Lighting Specification Guide: How to Build a Fixture Schedule

A useful decorative lighting specification package connects each fixture mark on the drawings to one verified product, one approved configuration, and one current set of project decisions. At minimum, give every fixture a stable ID; record its location, quantity, dimensions, finish, material, light source, voltage, controls, mounting, weight, and document status; then track approvals and revisions without overwriting the history.

This is not the same as collecting attractive product links. Architects, interior designers, contractors, electricians, purchasing teams, and suppliers need to know which facts are confirmed, which are still being reviewed, and which require site-specific professional approval. The schedule becomes the index; product data, drawings, finish references, installation information, and correspondence provide the supporting record.

This guide focuses on decorative residential and hospitality lighting coordination. It is not an electrical design, photometric calculation, code review, or substitute for the project professionals responsible for those decisions.

What is a decorative lighting fixture schedule?

A lighting fixture schedule is a controlled table that assigns a short mark—such as D01 or P03—to each fixture type used in a project. The same mark should appear consistently on plans, reflected ceiling plans, elevations, room schedules, quote requests, submittals, purchase records, and installation discussions.

The schedule should answer five questions without opening ten email threads:

1. What is it? The exact product, size, finish, material, and light-source configuration.
2. Where does it go? The room, drawing reference, mounting surface, and intended position.
3. How many are required? The current design quantity, with alternates kept separate.
4. What must be coordinated? Power, controls, support, clearances, access, and location suitability.
5. What is its status? Proposed, under review, approved, ordered, received, installed, or closed out.

A fixture schedule is not an approval by itself. It shows the project team's current coordinated intent. The responsible professionals still need to review electrical design, structural support, mounting conditions, controls, accessibility, local requirements, and the final product documents.

Separate the schedule, product data, and submittal record

Teams lose time when they expect one file to perform every job. Use three linked layers instead.

The Whole Building Design Guide separates shop drawings, product data, samples, manufacturer instructions, operation and maintenance data, and closeout submittals into distinct categories. That is a useful reminder even on a smaller residential project: a product page, a finish sample, and an installation document answer different questions.

Build the schedule around stable fixture IDs

Choose an ID convention before products are finalized. The code can indicate a broad type—C for ceiling, P for pendant, W for wall—or simply follow a project sequence. The exact letters matter less than stability.

• Give different sizes, finishes, light sources, or mounting configurations different IDs when the distinction affects ordering or installation.
• Do not recycle a retired ID for a new fixture. Mark the old line retired and create a new one.
• Keep a visible revision number and issue date on every exported schedule.
• Use the same ID in filenames, drawing callouts, review comments, and purchase references.
• When one fixture repeats in several rooms, list every location or link the ID to a room-by-room quantity breakdown.

For example, if P03 changes from a 31.5-inch ring to a 39.4-inch ring, the team should be able to see whether that is a revised P03 or a separate alternate—not infer the change from a replaced hyperlink.

Which fields belong in a professional fixture schedule?

Start with the fields below, then add project-specific requirements. A blank field should mean “not yet verified,” not “not applicable.” Use an explicit N/A only after someone responsible has confirmed that the field does not apply.

Do not add BIM, Revit, IES files, certifications, custom capabilities, or ratings to a schedule because they are common elsewhere. Record only what is available for the exact fixture and project. Dalmivik's Lighting Specifications and Submittals page explains what product information may be requested and keeps certification and rating claims product-specific.

Use a five-stage review workflow

1. Concept: define the job before naming the product

Record the room, decorative role, approximate scale, visual direction, and known constraints. A concept line can remain product-neutral, but label it that way. Do not let an inspiration image become an accidental specification.

2. Design development: replace preferences with verified candidates

For each candidate, compare actual dimensions, mounting, light source, finish, material, weight, and service access. Use the Statement Chandeliers, Sculptural Pendant Lights, and Wall Sconces collections as commercial comparison pages, then verify the exact product page before the candidate enters the schedule.

3. Coordination: resolve interfaces before release

Place the current fixture dimensions against the reflected ceiling plan, elevation, millwork, furniture, doors, sprinklers, HVAC, beams, and sightlines. Ask the electrical and construction team to resolve power, switching, dimming, junction boxes, structural support, access, and local requirements. Dalmivik's Installation and Electrical Safety and Bulb and Dimmer Compatibility pages define the selection-versus-professional-review boundary.

4. Submittal and procurement: freeze the ordered configuration

Package the schedule line with the current supporting documents and finish reference. Record review comments and the accepted configuration. Before purchase, reconcile the approved line with the quote: product, size, finish, quantity, destination, and any written project terms must match. The existing Lighting Project Quote Checklist covers the separate task of preparing a useful quote request.

5. Installation and closeout: preserve the final record

When fixtures arrive, inspect them before installation and reconcile received quantities and configurations with the approved schedule. Record approved field changes rather than editing history. At closeout, retain current product documents, care guidance, control information supplied for the project, and the installed fixture list.

How to review a decorative lighting substitution

A substitution is not equivalent because the thumbnail looks similar. Compare it against the design and technical requirements that made the original suitable.

1. Identity: exact product, configuration, finish, and quantity.
2. Scale: body size, complete installed drop, canopy or backplate, and visual weight.
3. Material and appearance: verified material, finish, color, translucency, and natural variation where applicable.
4. Light and controls: exact light source, color temperature, voltage, dimming method, and compatibility evidence.
5. Installation: mounting interface, weight, structural support, access, and instructions.
6. Environment: exact location suitability and any required ratings or approvals.
7. Commercial status: current quote, availability estimate, destination, and written terms—without converting an estimate into a promise.

If one of these cannot be verified, mark it unresolved. Do not fill the gap with a likely value. A project professional should decide whether the missing fact blocks approval.

Keep revisions readable instead of overwriting them

Use an append-only decision log beside the current schedule. Each change should state the fixture ID, old value, new value, reason, requester, reviewer, date, and affected documents. When a change affects dimensions, weight, mounting, electrical configuration, or controls, reopen the relevant coordination checks.

A simple status vocabulary helps:

• PROPOSED: a candidate, not approved for order.
• REVIEW: product facts captured; design or technical questions remain.
• HOLD: a named blocker prevents release.
• APPROVED: accepted by the project's authorized reviewers.
• RELEASED: reconciled to the order or procurement record.
• RECEIVED: quantity and visible configuration checked on arrival.
• INSTALLED: installation recorded; this does not replace inspection or commissioning obligations.

A pre-release lighting specification checklist

• Every fixture has one stable ID and every drawing uses it consistently.
• The exact product URL, model or SKU, size, finish, material, and quantity are current.
• Body dimensions, canopy or backplate, installed drop, and weight are labeled clearly.
• Voltage, light source, color temperature, dimming, and controls are verified for the exact configuration.
• Mounting, structure, junction box, clearances, and service access have named reviewers.
• Location suitability and any certification or rating requirement are evidence-backed, not assumed.
• Current product data, drawings, instructions, care information, and review comments are linked.
• The schedule revision matches the plan, quote, submittal, and purchase record.
• Alternates and substitutions are visibly separate from the approved selection.
• Unresolved facts have an owner and a HOLD status.

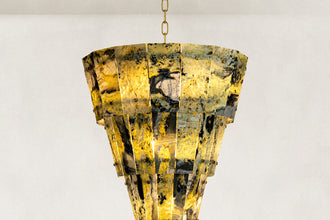

For Dalmivik project support, use the Trade and Project Support page for the verified service scope and Request a Project Quote when the product list, quantities, destination, and project timing are ready. As one current product example, the Tapered Marble Panel Chandelier page shows why a schedule should link the exact product record rather than rely on a generic fixture description.

Frequently asked questions

Sources and scope

• Whole Building Design Guide: Unified Submittals
• U.S. Department of Veterans Affairs: Shop Drawings, Product Data, and Samples
• Illuminating Engineering Society Los Angeles: fixture schedule criteria
• U.S. Department of Energy: Lighting Controls Solutions

Prepared September 12, 2026. This guide provides a coordination framework, not electrical, structural, architectural, engineering, code, procurement, or legal approval. Project contracts, current product documents, site conditions, and the responsible professionals control.
